Model: LightSpot HD


A range of high performance PIR sensors for dependable switching of lighting loads.

High definition lenses, performance optics and software are all optimised to provide class leading sensitivity and occupancy detection ensuring that the lights are always on when required.

QuickAnalytics enables greater energy saving and enhances user comfort through the precise monitoring and analysis of sensor activity data.

Technical data

Coverage: 360° (Range detailed overleaf)
Operating Voltage: 230V +/- 15% 50/60 Hz Recommended Circuit Protection 16A MCB
Power Consumption: Load On 500mW
                                     Load Off 150mW

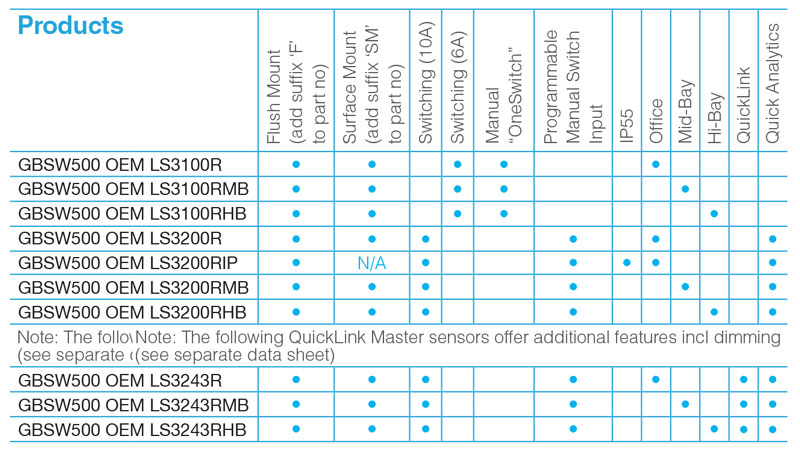

Load Rating: LS3100 6A
                       LS3200 10A
                       Max Inrush Current 80A
Operating Temperature: 0° C to 45° C
Storage Temperature: -20° C to 80° C
Humidity: 20% to 80% non-condensing
Fascia Colour: White (RAL9010)
Weight: 140g
Material: Flame retardant PC/ABS
IP Rating: IP4x (IP55 LS3200RIP)
Conformity: EMC-2004/108/EC
                     LVD – 2006/95/EC
