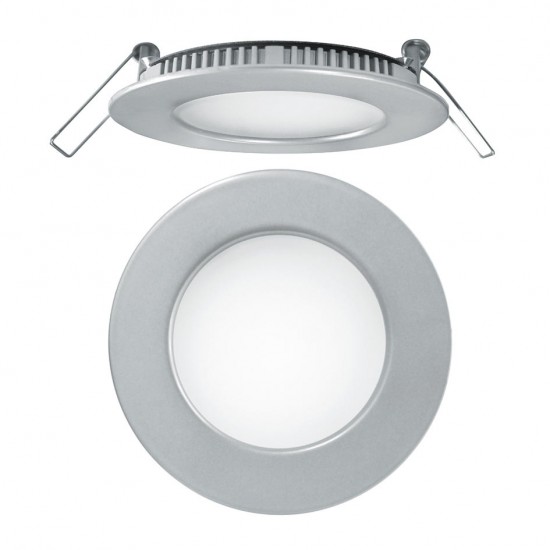

Recessed luminaire with bodies made of aluminium with thermo painted coating.

TECHNICAL DATA:
Lamp: LED Osram Duris E3
Equipment: Driver 350 mA
Watt: 7.7W
W Consumption: 9.5 W
Operating voltage: 220-240v 50-60 Hz
Life span: 40.000h
Colour temperature: 3000°K (920 lum.) 4000°K (920 lum.) 5700°K (920 lum.)
Protection degree: IP44
Chromatic reprod. index CRI: 80

COLOURS: White, Black, Gold, Chrome, Matt chrome, Striped nickel, Titanium

INSTALLATION: For recessed ceiling, adaptable to all types of modular and plaster ceilings.

INCLUDES:
Includes driver and 8w LED lamp.
Standardly supplied with 4000º K LED lamp.

ACCESSORIES:
DRF Dimmable driver edge phase
DR 1-10v Dimmable driver
DRD Dali Dimmable driver
DRP Dimmable driver with push button
PCFT Lighting control system for DR
3420 Wire connector for DR
4160 Driver to power 12 Vdc
4160 24 Driver to power 24 Vdc
AM Special marine environment paint

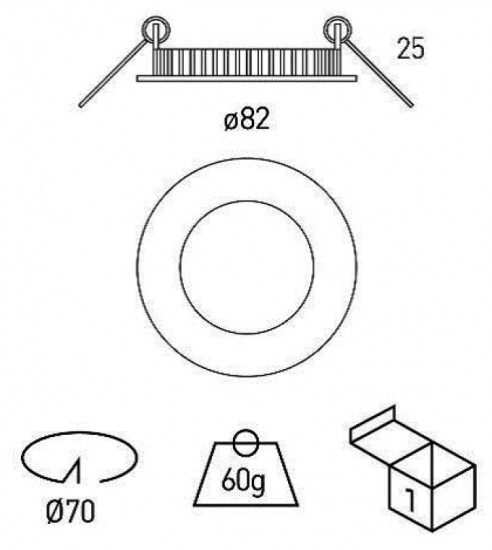

Weight: 0.1kg
Height: 25 mm
Diameter: Ø 82 mm
Ceiling cut: Ø 75 mm
