Dust and Waterproof

Model: Series 161/162

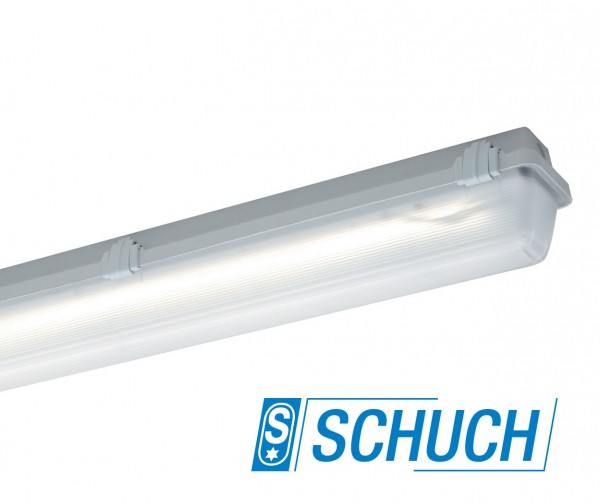

 Dustproof/Waterproof LED Light Fitting with Diffuser Series 161/162.. L.

Technical details

Housing: Glass fibre reinforced polyester resin, silicone gasket.
Diffuser: Injected, acrylic glass, frosted for glare limitation.
Closure: Three-part captive plastic clips (KK), incl. 2 safety clips (KKS) to ensure protection against
Reflector: Aluminium, painted, can be suspended or removed and carries the electrical components.
Connection: 3-pole or 5-pole terminal (DIMD).
Cable entries: 2 plugs M20.

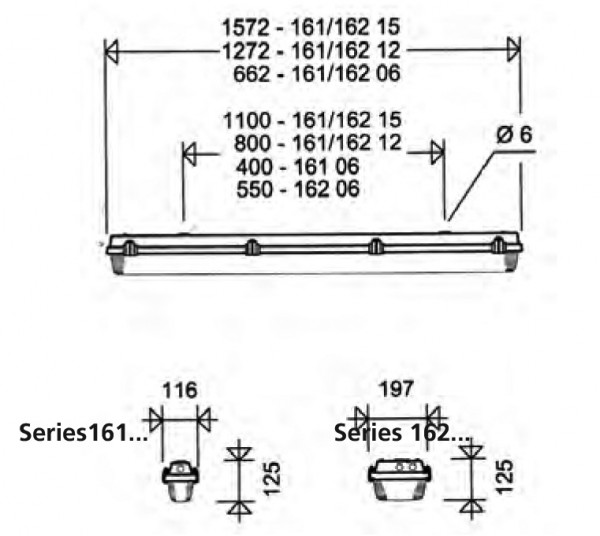

Mounting: Closed knock-outs for direct ceiling mounting (to be opened at site). Sealing and pressure
disks inside each fitting.


  • highest efficiency with luminous efficacy up to 145lm/W
  • homogeneous illumination by using frosted diffusers, no particular light points visible, comfortable perception of light, brilliant glare limitation
  • high colour rendering Ra > 80, according to the workplace guide lines suitable for nearly all plant locations
  • with “D”-sign, suitable for rooms with increased fire risk due to deposits of combustible dust and fibrous materials
  • special versions for high ambient temperatures up to +50°C, low temperatures down to -40°C and wide temperature range from -40°C up to +65°C, for outdoor installations and for applications in the food industry.
  • lower maintenance and downtime costs due to long maintenance intervals
  • ECG and reflector with LED-modules can be replaced by qualified personnel on-site
  • future proof by using standardized LED-modules (Zhaga)

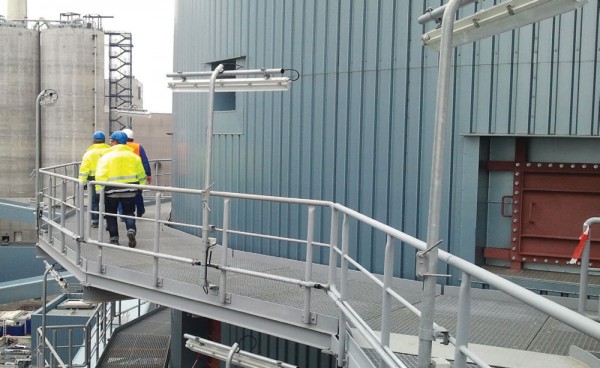

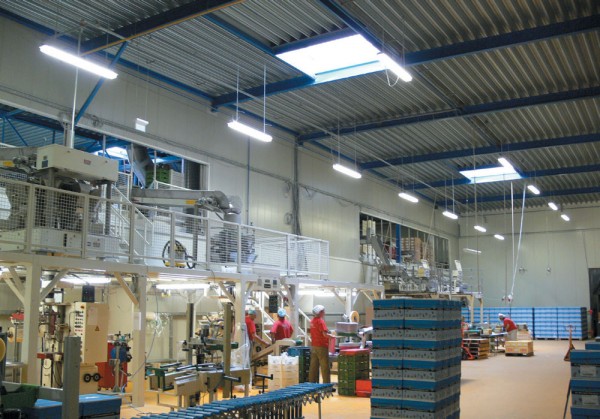

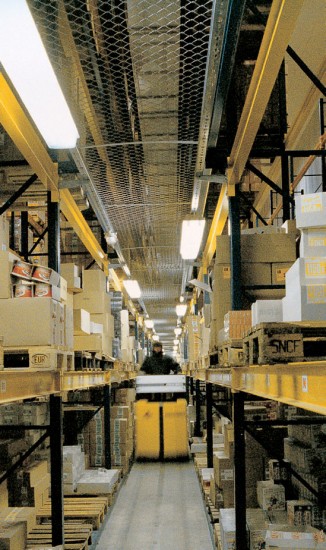

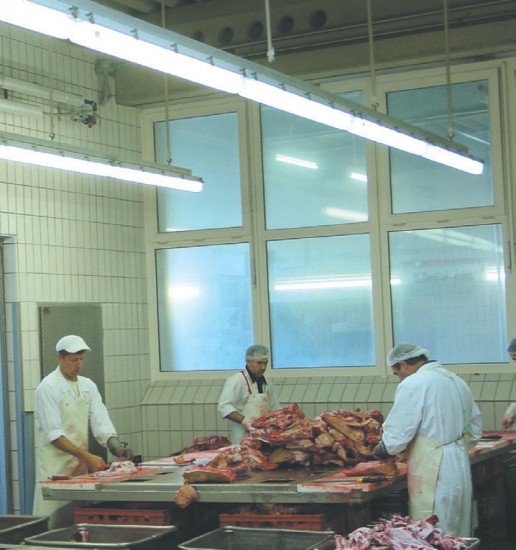

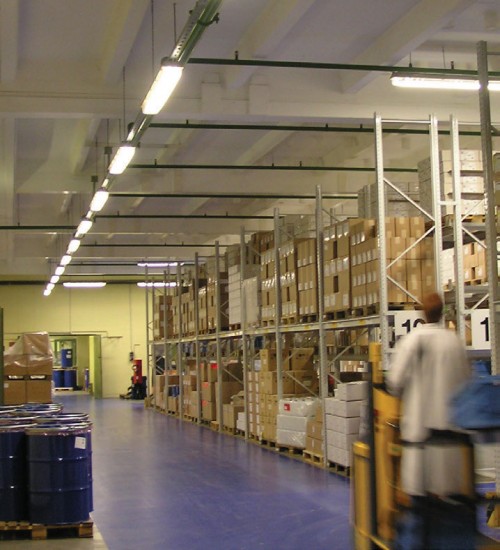

In humid, wet and dusty indoor areas of industrial and agricultural premises, for workshops and car parks, cold stores, low temperature stores, cooling and freezing chambers and walkable low temperature cabins in hotels, climate chambers, hard to reach areas with high downtime and maintenance costs when replacing the lamps. (In case of aggressive atmosphere please consult us).

Technical data

LED: Linear modules 4,000K, Ra > 80, L70B10 > 50,000h at max. ambient temperature
ECG: 220-240V, 50/60HZ, overload and short-circuit protection
Ambient temperature: -20°C (-40°C for types ...T40) up to ..°C see product table


  • 6 500K
  • high colour rendering index Ra>90 (light colour 940)
  • according to „International-Food-Standard“ (IFS)
  • for connection to central power supply unit (ZB)
  • PC-diffuser, frosted (PC)
  • stainless steel clips (KE)
