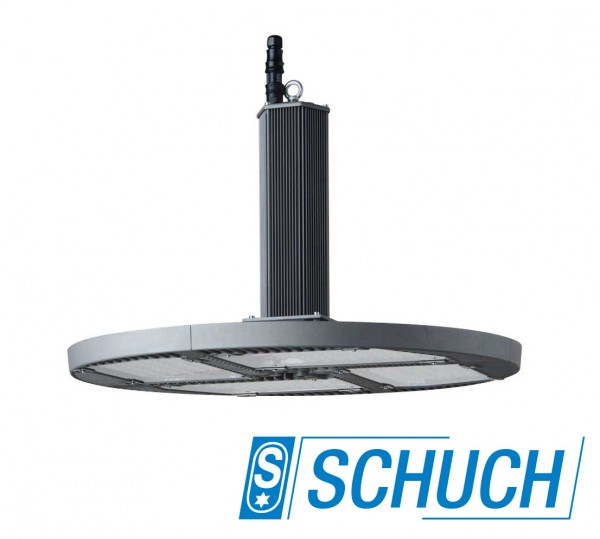

LED High Bay TRIANO XL Series 3405...

DESIGN

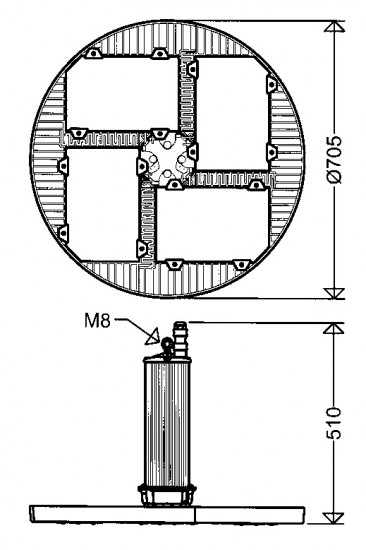

LED-housing: Robust four-part extruded aluminium housing with cooling fins, LED-modules and flat safety glasses (IK 09) All case parts powder coated in DB702N (mica-iron).
Optic: Lens optics with narrow-wide beam (TB) or narrow beam (T).
Connection: Preinstalled 3-pole plug-type connector. Plug mounted to the housing. Socket included.
Mounting: 1-point suspension, eyelet included.

FEATURES AND BENEFITS:

• efficient 1 : 1 - substitute for conventional high bay floodlights with 1 x 1000W HME or 2 x 400W HIT
• fast and easy mounting and commissioning due to 1-point suspension and plug-in connection (Plug & Play)
• optimized thermal management due to segementation of the LED modules and direct mounting to the housing, intelligently arranged cooling system, huge heat sink, excellent heat dissipation,
• high expectancy of system life L80B10 > 50,000 hours, even at permissible ambient temperatures of +40°C
• colour reproduction Ra > 80, according to the workplace guide lines suitable for nearly all plant locations
• uniform illumination due to the „Multi-Layer Technology“ i.e. every individual LED illuminates the whole surface, the light curves of the individual LED are overlapping.

APPLICATIONS:
Production areas and warehouses, maintenance and assembly shops, cool storage facilities, walkways in rack areas, hardware stores etc.

LED: Highpower-LED 4,000K, CRI > 80, (T-version Ra > 70) lifetime L80B10 > 50.000h at max. ambient temperature (see notes).
ECG: 220-240V, 50-60Hz. Due to the inrush current of the electronic ballasts, the maximum permissible number of light fittings per circuit breaker is limited. Overvoltage protection, excess temperature protection-, overload and short circuit protection.
Ambient temperature: -20°C up to +40°C.

OPTIONS:

• 5,700K (CRI > 70)
• dimmable via DALI interface (DIMD)
• PC cover for applications in food industry areas (IFS)
• "D" - sign for locations with increased fire risk (D)
• silicone free
• light output reduction (LR) per 230V control line (dimmable)
• uniform luminous flux option (CL) to keep the light output on same level for the whole life cycle
