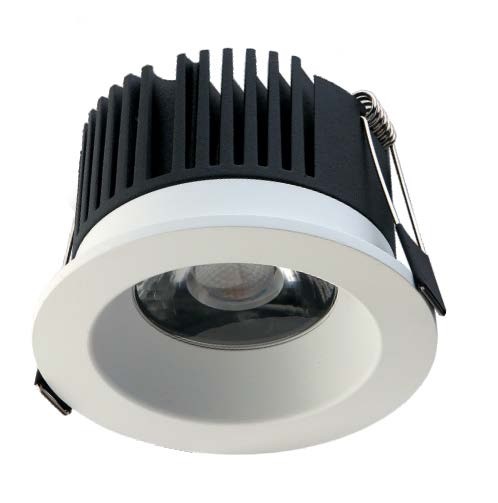

Fire rated IP65 Tunable downlighter.

Fire rated fixed recessed 13W LED to fit void as shallow as 95mm. Incorporated with inbuilt tunable white feature, allowing you to selected colour temperature of 3000°K, 4000°K or 5000°K. Suitable with Trailing or Leading edge dimming as standard.

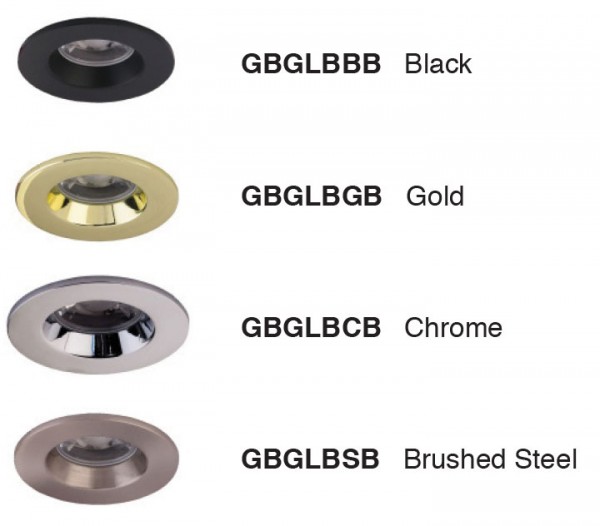

Supplied with White bezel as standard.(other colours are available)

SPECIFICATIONS

• Die-cast aluminium heatsink

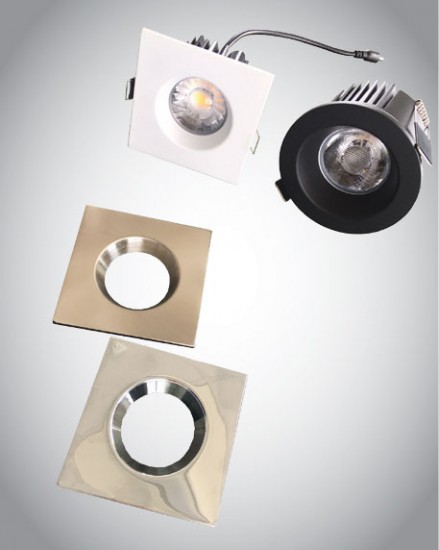

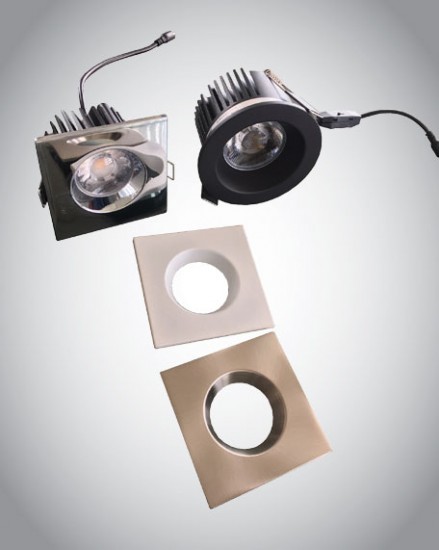

• Die cast interchangeable bezel
• White bezel as Standard
• Plug n Play driver
• Triac dimming as Standard
• Thermal cooling housing
• Fire rating tested to FR90 (90min)

Electrical Input Data
Rated input Voltage: 220-240 Vac
Rated input Frequency: 50 - 60 Hz
Rated input Current: 0.065A
Power factor: >0.90

Optical Characteristics
Wattage: 13W
CCT: 3000°K 4000°K 5000°K
Lumens: 1100 lm 1200 lm 1140 lm
CRI: >80
Beam Angle: 36°
Life L70 (hrs): 50,000 hrs

WW = Warm White 3000°K
NW = Neutral White 4000°K
CW = Cool White 5000°K
