Circular Recessed

Model: DLV 220

Description

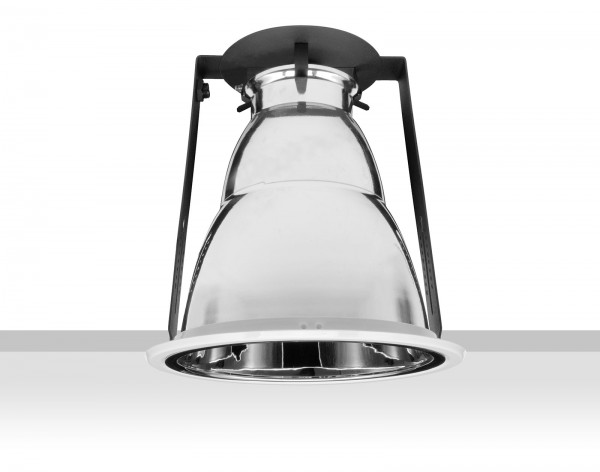

Recessed downlight for compact fluorescent lamps in vertical mode. Body (standard zinc, painted black on request) and ring (standard white, other colours on request) are made of steel. Reflector made of aluminium.

Technical extras upon request:

1. Emergency supply - battery pack 1/2/3h. Please add EM1, EM2, EM3 after index numer.

2. Compensation or passive power (capacitor). Please add COMPENSATION after index number.

3. Dimmable ballast EVG DIM (1 - 10 V). Please add EVG DIM after index number.

4. Digital dimmable ballast (DALI). Please add DALI after index number.

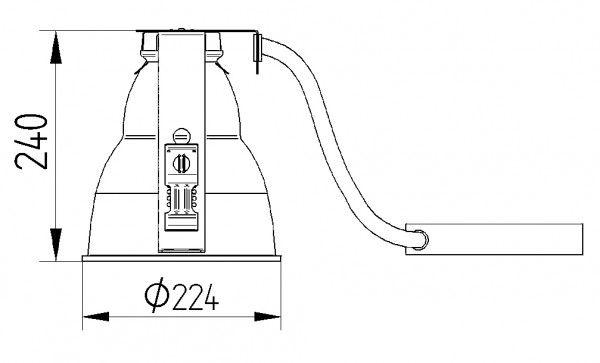

Dimensions

Cut out size - 200 mm

Accessories

0003 - white reflector (any other RAL colour available)
0004 - wide aluminium ring (any other RAL colour available)
0005 - three additional steel rings (any other RAL colour available)
0006 - additional blue acrilic ring (any other RAL colour available)
0007 - painting of the basic ring (any RAL colour available - please add RAL code after art. no.)
0021 - IP44 glass with additional aluminium ring (any RAL colour)
0022 - acrilic ring with glass tube
0023 - acrilic ring with glass cone tube
0025 - clear 5 mm thick decorative glass
0026 - central frosted 5 mm thick decorative glass
0027 - outer frosted 5 mm thick decorative glass
0028 - completely frosted 5 mm thick decorative glass
0029 - clear 10 mm thick decorative glass
0030 - central frosted 10 mm thick decorative glass
0031 - outer frosted 10 mm thick decorative glass
0032 - completely frosted 10 mm thick decorative glass
0033 - clear 5 mm thick decorative glass ring
0034 - central frosted 5 mm thick decorative glass ring
0035 - outer frosted 5 mm thick decorative glass ring
0036 - completely frosted 5 mm thick decorative
0037 - clear 10 mm thick decorative glass ring
0038 - central frosted 10 mm thick decorative glass ring
0039 - outer frosted 10 mm thick decorative glass ring
0040 - completely frosted 10 mm thick decorative glass ring
0042 - Siper - decorative central frosted glass based on aluminium net
0043 - Siper plus - decorative central frosted glass based on aluminium net with central glass attachment
0044 - Ring V - stylish additional aluminium ring (possible in any RAL colour)
0000-002699 - Concrete ceiling box (please add product name after index number)
0000-002798 - Ceiling plate (please add product name after index number)
