Model: basicDIM

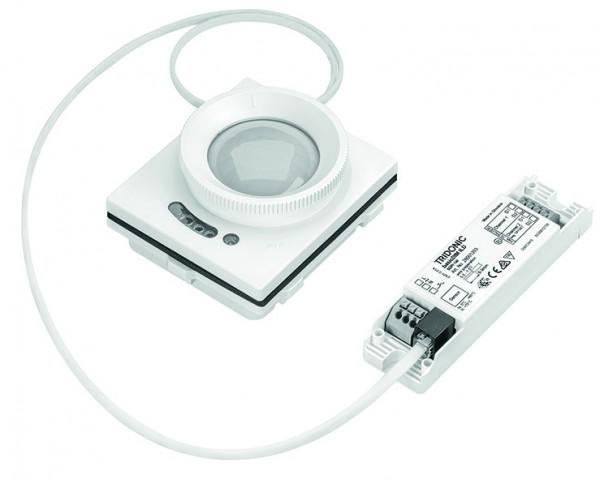

Compact control module with ambient light sensor and motion sensor.

Technical details
  • Compact dimensions for luminaire installation
  • For up to 10 DSI or DALI ballasts (max. 5 per output channel)
  • 2 DALI/DSI output channels with adjustable negative offset from channel 2 to channel 1
  • Ambient light sensor with motion detector
  • Max. installation height 16 m
  • IP65 sensor head
  • Switch input for on/off switching and dimming
  • Can be remote controlled
  • Individual adjustment of the parameters with basicDIM ILD Programmer or DSI-SMART Programmer
  • 5-year guarantee


Technical data

Rated supply voltage: 220 – 240 V
Mains frequency: 50 / 60 Hz
Power: 2W
Stand-by power: 0.5W
Momentary-action switch input for dimming: single
Digital control line DSI/DALI: 2
Control output (devices): 10
Max. output cable length at 1.5 mm²: 100 m
Operating temperature: 0 ... +60 °C
Storage temperature: -25 ... +70 °C
Type of protection controller: IP20
Type of protection sensor: IP65 ready
Max. casing temperature tc: 75°C
