Circular Recessed

Model: GOT 220 CDM-TD

Description

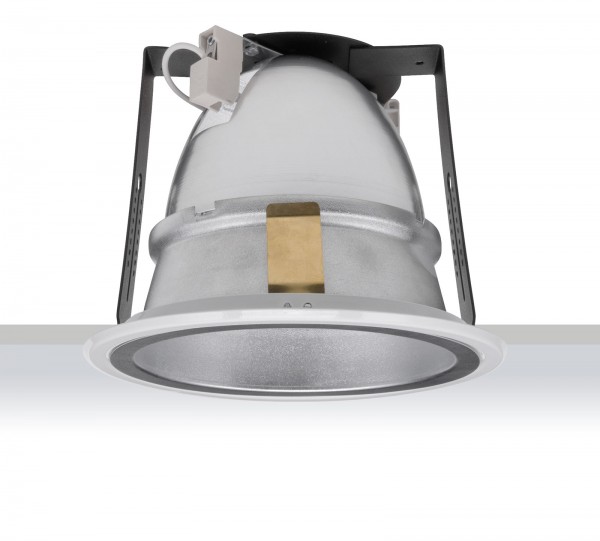

Recessed downlight for CDM-TD lamp. Body (standard zinc, painted black on request) and ring (standard white, other colours on request) are made of steel. Reflector is made of aluminium (sandblasted surface).

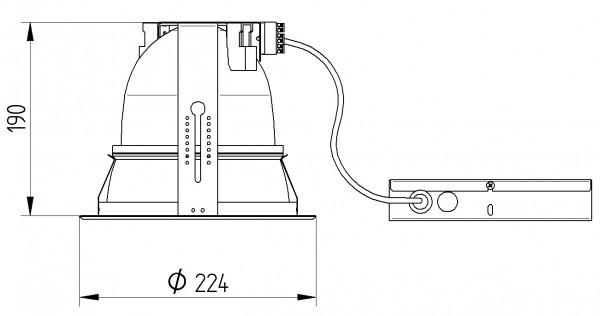

Dimensions

Cut out size - 200 mm

Accessories

0003 - white reflector (any other RAL colour available)
0004 - wide aluminium ring (any other RAL colour available)
0005 - three additional steel rings (any other RAL colour available)
0006 - additional blue acrilic ring (any other RAL colour available)
0007 - painting of the basic ring (any RAL colour available - please add RAL code after art. no.)
0021 - IP44 glass with additional aluminium ring (any RAL colour)
0022 - acrilic ring with glass tube
0023 - acrilic ring with glass cone tube
0025 - clear 5 mm thick decorative glass
0026 - central frosted 5 mm thick decorative glass
0027 - outer frosted 5 mm thick decorative glass
0028 - completely frosted 5 mm thick decorative glass
0029 - clear 10 mm thick decorative glass
0030 - central frosted 10 mm thick decorative glass
0031 - outer frosted 10 mm thick decorative glass
0032 - completely frosted 10 mm thick decorative glass
0033 - clear 5 mm thick decorative glass ring
0034 - central frosted 5 mm thick decorative glass ring
0035 - outer frosted 5 mm thick decorative glass ring
0036 - completely frosted 5 mm thick decorative
0037 - clear 10 mm thick decorative glass ring
0038 - central frosted 10 mm thick decorative glass ring
0039 - outer frosted 10 mm thick decorative glass ring
0040 - completely frosted 10 mm thick decorative glass ring
0042 - Siper - decorative central frosted glass based on aluminium net
0043 - Siper plus - decorative central frosted glass based on aluminium net with central glass attachment
0044 - Ring V - stylish additional aluminium ring (possible in any RAL colour)
0000-002699 - Concrete ceiling box (please add product name after index number)
0000-002798 - Ceiling plate (please add product name after index number)
